Chrosziel CDM-SFR Sony FR7 Zoom Servo Drive

Call for Price

Chrosziel universal zoom servo drive for the Sony ILME-FR7, enabling remote motorized zoom on mechanically geared E-mount lenses through the FR7 Option port and RM-IP500 or web control.

Description

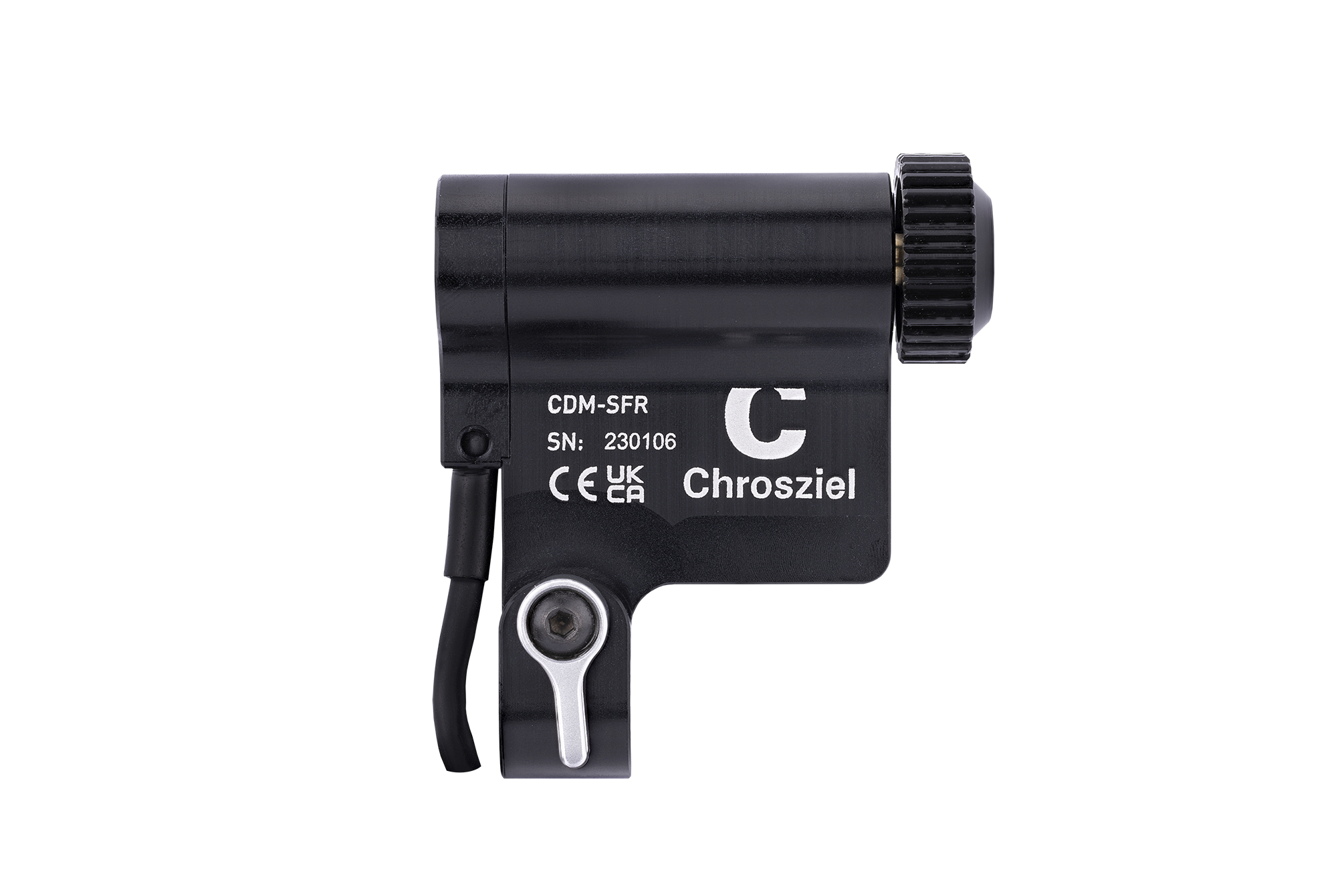

The Chrosziel CDM-SFR is a compact universal zoom servo drive made specifically for the Sony ILME-FR7. It adds smooth, remote motorized zoom control to mechanically geared E-mount zoom lenses, expanding the FR7 beyond lenses with built-in servo zoom.

Key Features

Designed specifically for the Sony ILME-FR7 Cinema Line PTZ camera
Compatible with mechanically geared Sony E-mount zoom lenses, including G, GM, GM II and ZEISS options
Integrates through the FR7 Option port using Sony VISCA/RS-232 control
Remote zoom operation through the Sony RM-IP500 controller and FR7 web interface
Mounts to standard 15 mm lightweight support rods
Module 0.8 snap-on gears available in 24 mm, 30 mm and 40 mm diameters
Automatic initialization through the camera, with a local manual-initialization button
Status LED indicates inactive, initializing and ready states
Includes distribution box, coiled control/power cable, clamps and required connections
No separate power supply required; uses the Sony FR7 19.5 V power supply with pass-through power
0.5 Nm motor torque and maximum 10 W power consumption
Complete installed weight approximately 230 g / 8.1 oz
Operating range from -10°C to +40°C

Compatible Imagecraft Equipment

Designed for the Sony ILME-FR7 Full-Frame PTZ Camera and controllable through the Sony RM-IP500 PTZ Camera Remote Controller.

Rental Notes

Available as part of a configured Sony FR7 package. Lens, gear-ring, rod support, controller, networking and signal-routing options can be matched to the production. Contact Imagecraft Productions for compatibility, availability and pricing.

View Chrosziel manufacturer specifications

View the Chrosziel CDM-SFR operating manual
